Description

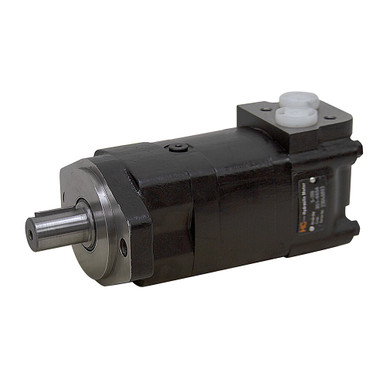

30.51 cu in Hydraulic Motor Hydro Custom BM5A-HAHBDCD
Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS
- Brand Hydro Custom
- Model BM5A-HAHBDCD
- Manufacturer Part Number CUM 351-0650
- Displacement 30.51 cu in
- Motor Type Gerolor
- Rotation Reversible
- Pressure
1740 PSI cont.
2030 PSI int. - Torque
7470 in-lbs. cont.
8398 in-lbs. int. - Speed
148 RPM cont.
230 RPM int. - Flow
20 GPM cont.
30 GPM int. - Mount SAE A 2 Bolt
- Shaft 1″ x 1.615″ long w/ 1/4″ parallel key, end tapped 1/4″-20
- Ports SAE 10
- Case Drain SAE 4
- Size 12.12″ x 3.74″ x 5.118″
- Shpg. 34 lbs.
