Description

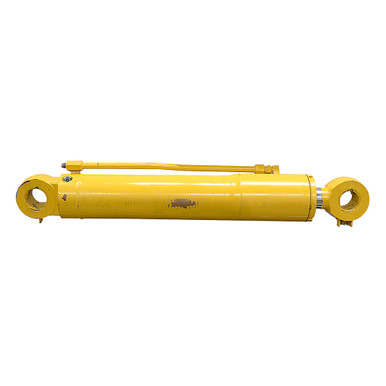

4.066″(105MM) x 15.25″(387MM) x 2.362″(60MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory, John Deere AP36002, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.066″(105MM) x 15.25″(387MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.362″(60MM)
|
- Extend Port BSPP 6
- Retract Port JIC 6
- Retracted Length 33″
- Gland Face to Rod Pin Center 4″
- Shpg. 126 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.565″
- Pin-Center-To-Tang-End 2.338″
- Pin Hole 2.168″(55MM)
|
- Base End Tang
- Width 2.557″
- Pin-Center-To-Tang-End 2.26″
- Pin Hole 2.168″(55MM)
|
