Description

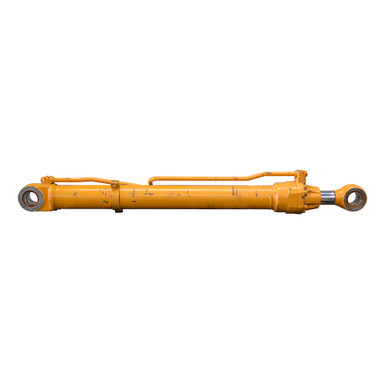

4.108″(105mm) x 42.297″(1075mm) x 2.956″(75mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model 31E6-0006.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.108″(105mm) x 42.297″(1075mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.956″(75mm)
|
- Ports BSPP 1/2″-14 Female
- Retracted Length 63.5″
- Gland Face to Rod Pin Center 6.875″
- Shpg. 309 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.533″
- Pin-Center-To-Tang-End 2.698″
- Pin Hole 2.761″(70mm)
|
- Base End Tang
- Width 3.528″
- Pin-Center-To-Tang-End 2.758″
- Pin Hole 2.757″(70mm)
|
