Description

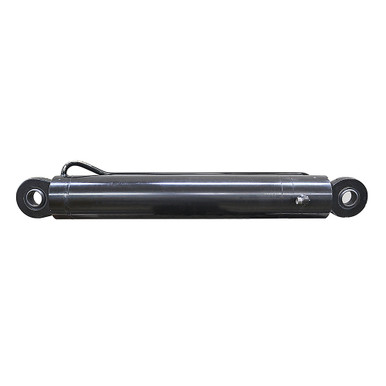

4.472″(115MM) x 25″(635MM) x 1.969″(50MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory, Fuchs Material 6501210000, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.472″(115MM) x 25″(635MM)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 1.969″(50MM)
|
- Ports 24° flareless fitting 15-L M22 x 1.5
- Retracted Length 38″
- Gland Face to Rod Pin Center 3.25″
- Shpg. 142 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.43″
- Pin-Center-To-Swivel Eye-End 2.451″
- Swivel Eye Width 1.75″
- Pin Hole 1.774″(45MM)
|
- Base End Swivel Eye
- Width 1.515″
- Pin-Center-To-Swivel Eye-End 2.479″
- Swivel Eye Width 1.75″
- Pin Hole 1.774″(45MM)
|
