Description

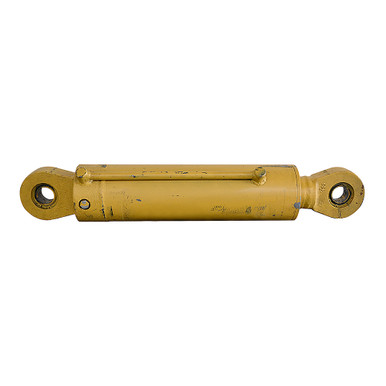

4.5″ x 10.75″ x 3″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting, hydraulic cylinder, stamped 802571. Cylinder has a non-adjustable 629 3500 PSI 2N42G10 cartridge valve.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 10.75″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 3″
|
- Ports SAE 8
- Retracted Length 26.5″
- Gland Face to Rod Pin Center 4.25″
- Shpg. 120 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.77″
- Pin-Center-To-Swivel Eye-End 2.277″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
- Base End Swivel Eye
- Width 1.79″
- Pin-Center-To-Swivel Eye-End 2.244″
- Swivel Eye Width 1.375″
- Pin Hole 1.5″
|
