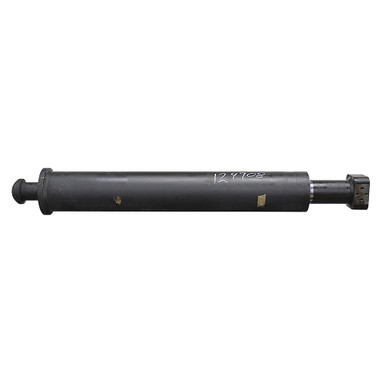

4.5″ x 24.25″ x 3.25″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped THI50606NS. Manifold ports on rod.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 24.25″
- Gland Retainer Snap ring
- Pressure 2500 PSI max.
- Rod Dia. 3.25″ Hollow
- Rod Thickness 0.506″
|
- Manifold Ports 0.267″ port holes on 1.529″ centers
- Manifold Mount Two 5/16″-18 TPI threaded holes on 1.244″ centers
- Retracted Length 49″
- Gland Face to Rod Pin Center 8.625″
- Shpg. 211 lbs.
|
| END MOUNTINGS |
- Rod End Flat Block
- Block Dimensions 4.5″ x 4.5″ x 2″
- Block Mounting Two 5/8″-18 TPI threaded holes on 3.98″ centers
|
- Base End Half Ball
- Ball Width 1.75″
- Ball O.D. 3.485″
|
