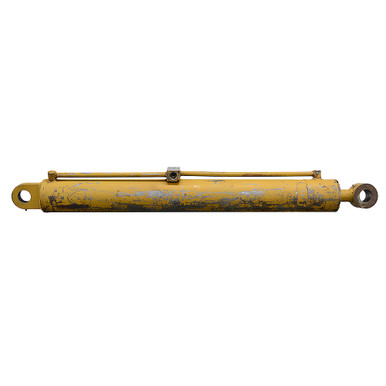

4.5" x 28" x 2" Double Acting Hydraulic Cylinder Seitz Mgf Co 80050

4.5″ x 28″ x 2″ Double Acting Hydraulic Cylinder Seitz Mgf Co 80050

Original price was: $299.95.Current price is: $74.99.

SKU: 906206 Category:

Description

4.5″ x 28″ x 2″ HYD CYL
Unused old inventory. SEITZ MGF. CO. 80050, Welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5″ x 28″
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 2″
  • Ports SAE 12
  • Manifold Two 0.44″ ports and one 0.132″ port
  • Manifold Mounting Four 1/4″-20 TPI x 0.75″ threaded holes on 1.5″ x 1.75″ centers
  • Retracted Length 54″
  • Gland Face to Rod Pin Center 4.375″
  • Shpg. 212 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.021″
  • Pin-Center-To-Tang-End 2″
  • Pin Hole 2″
  • Base End Tang
  • Width 1.519″
  • Pin-Center-To-Tang-End 2″
  • Pin Hole 2″
