Description

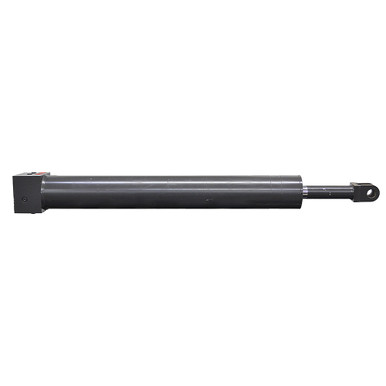

4.5″ x 28″ x 2″ DOUBLE-ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Cylinder has cavity for solenoid cartridge valves (Cartridges not included). Numbers on cylinder 12791893.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 28″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 2″
|
- Ports SAE 6
- Retracted Length 52.25″
- Gland Face to Rod Pin Center 10.25″
- Shpg. 143 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 2.16″
- Inside Width 1.13″
- Throat Depth 3.19″
- Pin Hole 1.26″(32mm)
|
- Base End Flange
- Dimensions Four M12-1.75 tapped holes on 4.375″ bolt centers
|
