Sale!
4.5" x 28" x 2" Double Acting Hydraulic Cylinder Volvo 12791893

4.5″ x 28″ x 2″ Double Acting Hydraulic Cylinder Volvo 12791893

Original price was: $229.95.Current price is: $57.49.

SKU: 905312 Category:

Description

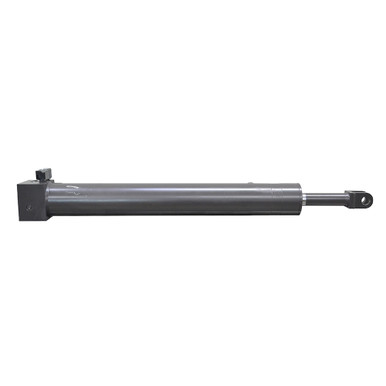

4.5″ x 28″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Cylinder has adjustable cartridge valves marked 1CE30F35S5-SP3900 and two HYDRAFORCE 24 Volt DC solenoid valves marked SF08-22. Numbers on cylinder 12791893.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5″ x 28″
  • Barrel Thickness 0.25″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI
  • Rod Dia. 2″
  • Ports SAE 6
  • Retracted Length 52.25″
  • Gland Face to Rod Pin Center 10.25″
  • Shpg. 143 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.16″
  • Inside Width 1.13″
  • Throat Depth 3.19″
  • Pin Hole 1.26″(32mm)
  • Base End Flange
  • Dimensions Four M12-1.75 tapped holes on 4.375″ bolt centers
