Sale!

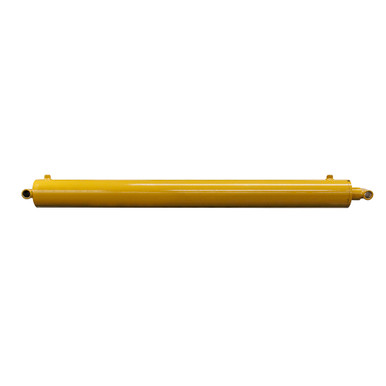

4.5" x 48" x 2.25" Double-Acting Hydraulic Cylinder Bailey 321-448

4.5″ x 48″ x 2.25″ Double-Acting Hydraulic Cylinder Bailey 321-448

Original price was: $599.95.Current price is: $119.99.

SKU: 906740 Category:

Description

4.5″ x 48″ x 2.25″ DOUBLE-ACTING HYDRAULIC CYLINDER
New, Bailey 321-448 welded double-acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5″ x 48″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI max.
  • Rod Dia. 2.25″
  • Ports SAE 8
  • Retracted Length 59″
  • Gland Face to Rod Pin Center 3″
  • Shpg. 200 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 1.76″
  • Width 3.25″
  • Pin Hole 1.25″
  • Base End Cross-Tube
  • O.D. 1.76″
  • Width 5.75″
  • Pin Hole 1.25″
California
Residents		 WARNING: Cancer and Reproductive Harm
