Description

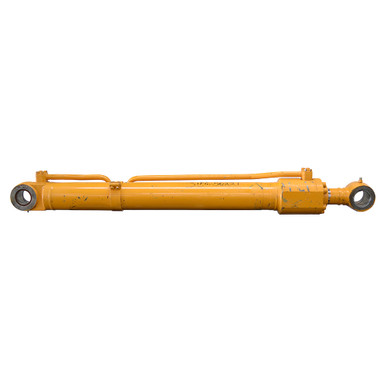

4.519″(115mm) x 42.938″(1090mm) x 3.145″(80mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model 31F-50221.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.519″(115mm) x 42.938″(1090mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.145″(80mm)
|
- Ports CODE 61 FLANGE 12
- Retracted Length 64.25″
- Gland Face to Rod Pin Center 6.625″
- Shpg. 377 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2.732″
- Pin-Center-To-Tang-End 2.756″
- Pin Hole 2.962″(75mm)
|
- Base End Tang
- Width 3.726″
- Pin-Center-To-Tang-End 2.741″
- Pin Hole 2.759″(70mm)
|
