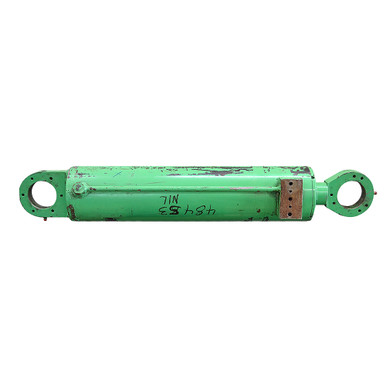

4.692"(120mm) x 16.75"(425mm) x 2.353"(60mm) Double Acting Hydraulic Cylinder

4.692″(120mm) x 16.75″(425mm) x 2.353″(60mm) Double Acting Hydraulic Cylinder

Original price was: $199.95.Current price is: $49.99.

SKU: 906116 Category:

Description

4.692″(120mm) x 16.75″(425mm) x 2.353″(60mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.692″(120mm) x 16.75″(425mm)
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 2.353″(60mm)
  • Manifold Ports Two, 0.241″ dia. port holes
  • Manifold Mount Three, M10-1.5 x 0.75″ tapped holes on 1-1/2″ centers
  • Manifold Dimensions 2.25″ x 4″
  • Retracted Length 31.75″
  • Gland Face to Rod Pin Center 4.125″
  • Shpg. 132 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.385″
  • Pin-Center-To-Tang-End 2.26″
  • Pin Hole 2.95″(75mm)
  • Base End Tang
  • Width 1.383″
  • Pin-Center-To-Tang-End 2.297″
  • Pin Hole 2.95″(75mm)
