Description

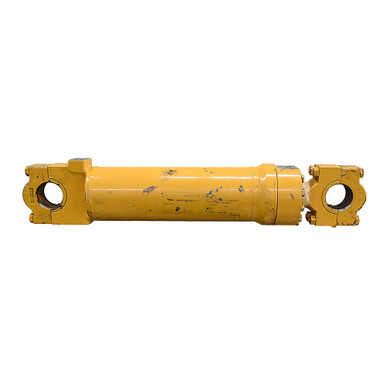

4.702″(120MM) x 12.75″(324MM) x 2.357″(60MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting, hydraulic cylinder, stamped 9789839. (Missing half of ball collar on both ends)
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.702″(120MM) x 12.75″(324MM)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.357″(60MM)
|
- Ports Code 62 Flange size 12
- Retracted Length 29.125″
- Gland Face to Rod Pin Center 4.125″
- Shpg. 176 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel-Ball
- Ball Width 3″
- Ball O.D. 3″
|
- Base End Swivel-Ball
- Ball Width 3″
- Ball O.D. 3″
|
