Description
4.75″ x 18.875″ x 3″ HYD CYL

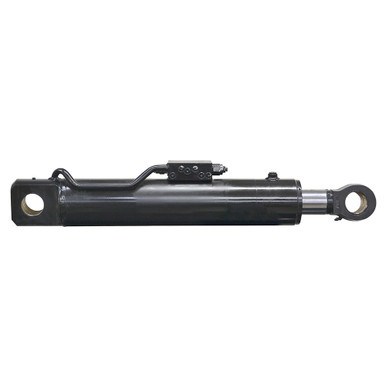

Unused old inventory. ALAMO GROUP 83305023, welded, double acting hydraulic cylinder. Extend port in valve manifold with two cartridge valves, one marked 1305 1CPBD90F2P-220PSI the other 1404 1DR2P40SV.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.75″ x 18.875″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 3″
- Rod Thickness 3″
|
- Ports SAE 8
- Retracted Length 37″
- Gland Face to Rod Pin Center 6.375″
- Shpg. 206 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.006″
- Pin-Center-To-Tang-End 2.545″
- Pin Hole 2.5″
|
- Base End Tang
- Width 3.004″
- Pin-Center-To-Tang-End 2.425″
- Pin Hole 2.5″
|
