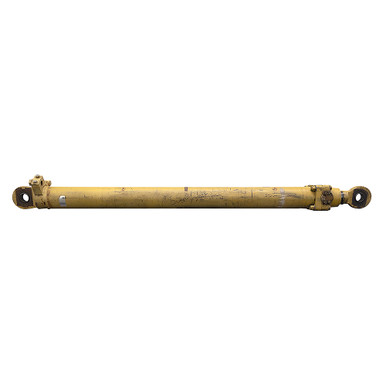

4.75" x 58.5" x 3.25" Double Acting Hydraulic Cylinder Benton Harbor P/N 7046874

4.75″ x 58.5″ x 3.25″ Double Acting Hydraulic Cylinder Benton Harbor P/N 7046874

Original price was: $619.95.Current price is: $123.99.

SKU: 906352 Category:

Description

4.75″ x 58.5″ x 3.25″ DA HYDRAULIC CYLINDER
New. Benton Harbor P/N 7046874 welded cylinder with bolt-on gland retainer.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4-3/4″ x 58-1/2″
  • Barrel Thickness 3/8″
  • Pressure 3000 PSI max.
  • Rod Dia. 3-1/4″
  • Ports SAE 16
  • Retracted Length 83″
  • Shpg. 460 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 1-3/4″
  • Pin Center to Tang End 2-15/16″
  • Pin Hole 2″
  • Base End Tang w/ Swivel Eye
  • Max Thickness 1-3/4″
  • Pin Center to Tang End 3″
  • Pin Hole 2″
