4.75"(120mm) x 63.75"(1619mm) x 3.196"(80mm) Single Acting Hydraulic Cylinder Benton Harbor Engineering 1681336

4.75″(120mm) x 63.75″(1619mm) x 3.196″(80mm) Single Acting Hydraulic Cylinder Benton Harbor Engineering 1681336

Original price was: $499.95.Current price is: $99.99.

SKU: 904945 Category:

Description

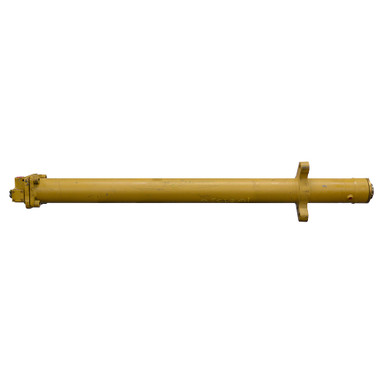

4.75″(120mm) x 63.75″(1619mm) x 3.196″(80mm) SINGLE ACTING HYDRAULIC CYLINDER
Unused old inventory. BENTON HARBOR ENGINEERING single acting hydraulic cylinder. Numbers on cylinder 1681336.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 4.75″(120mm) x 63.75″(1619mm)
  • Barrel Thickness 0.309″
  • Gland Retainer Bolt on
  • Pressure 1750 PSI
  • Rod Dia. 3.196″(80mm)
  • Rod Thickness 0.75″
  • Ports SAE 16
  • Retracted Length 77″ end to end
  • Gland Face to Rod Pin Center 0.625″
  • Shpg. 347 lbs.
END MOUNTINGS
  • Rod End Tapped
  • Dimensions 3.196″ dia w/ four 1/2″-20 x 1.25″ tapped holes on 1.875″ centers
  • Base End Plain
  • Mount Dimensions Two 1″ bolt holes on 10.25″ centers and 1.78″ thick
