Description

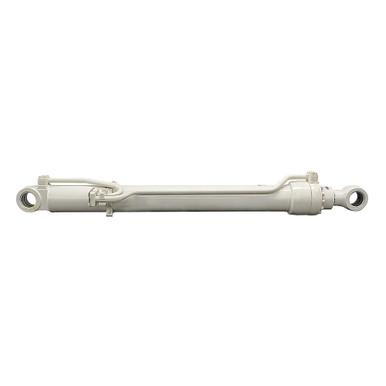

4.796″(120mm) x 49.5″(1257mm) x 3.346″(85mm) HYD CYL
Unused old inventory. DOOSAN K1000871A.WH, welded, double acting, hydraulic (RH) boom cylinder. Stamped 54B124WH-2 T21 BOOM-RH-TEREX.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.796″(120mm) x 49.5″(1257mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.346″(85mm)
- Rod Thickness 3.346″(85mm)
|
- Ports CODE 61 FLANGE 12
- Retracted Length 70.25″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 472 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.775″
- Pin-Center-To-Tang-End 2.717″
- Pin Hole 3.154″(80mm)
|
- Base End Tang
- Width 3.778″
- Pin-Center-To-Tang-End 2.671″
- Pin Hole 3.154″(80mm)
|
