Description

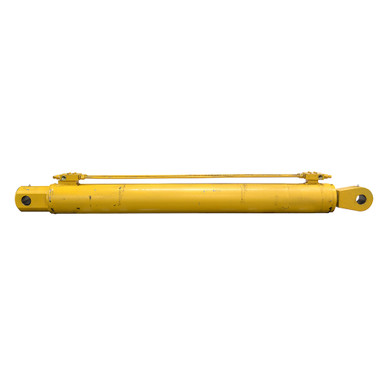

4.876″(125MM) x 45.25″(1149.35MM) x 2.75″(69.85MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder. Two adjustable check valves one on each end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.876″(125mm) x 45.25″(1149.35mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.75″(69.85MM)
|
- Ports 3/8″ NPT
- Retracted Length 64.875″
- Gland Face to Rod Pin Center 5.125″
- Shpg. 358 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.55″
- Pin-Center-To-Tang-End 2.356″
- Pin Hole 1.975″(50mm)
|
- Base End Tang
- Width 4.34″
- Pin-Center-To-Tang-End 2.359″
- Pin Hole 1.975″(50mm)
|
