Description

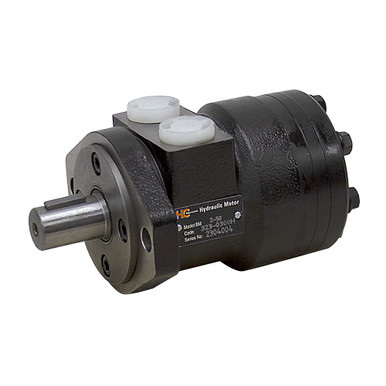

4.88 cu in Hydraulic Motor Hydro Custom BM2H-CAACADA
Brand new Hydro Custom BM2 series motor. Gerolor power element. Interchangeable with Char-Lynn “S” series motors.
SPECIFICATIONS
- Brand Hydro Custom
- Model BM2H-CAACADA
- Manufacturer Part Number CUM 322-0302H
- Displacement 4.88 cu in
- Motor Type Gerolor
- Rotation Reversible
- Pressure
2030 PSI cont.
2900 PSI int. - Torque
1414 in-lbs. cont.
1680 in-lbs. int. - Speed
750 RPM cont.
940 RPM int. - Flow
15.8 GPM cont.
20 GPM int. - Mount SAE A 2 bolt
- Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
- Ports SAE 10
- Case Drain SAE 4
- Size 7.685″ x 3.622″ x 5.118″
- Shpg. 20 lbs.
