4.88 cu in Hydraulic Motor Hydro CustomBM1H-CAADADB

Description

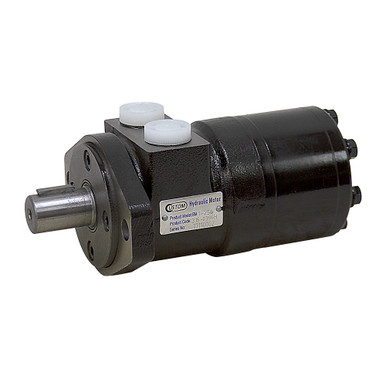

4.88 cu in HYDRAULIC MOTOR HYDRO CUSTOM BM1H-CAADADB
Brand new, Hydro Custom BM1 series hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn H series and Danfoss DH series motors.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM1H-CAADADB
• Manufacturer Part Number CUM 316-0392H
• Displacement 4.88 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    2030 PSI cont.
    2537 PSI int.
• Torque
    1140 in-lbs. cont.
    1503 in-lbs. int.
• Speed
    820 RPM cont.
    900 RPM int.
• Flow
    15 GPM cont.
    20 GPM int.
• Mount SAE A 2 bolt
• Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
• Ports 1/2″ NPT
• Case Drain SAE 4
• Size 7.641″ x 3.622″ x 5.118″
• Shpg. 17 lbs.
