Description

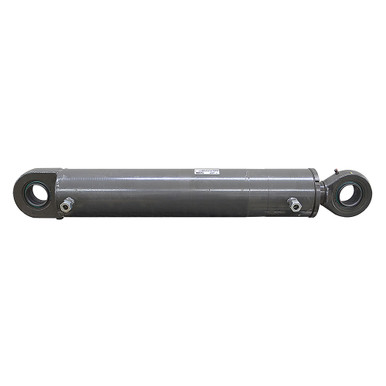

4.884″(125MM) x 21.625″(549MM) x 2.5″(63MM) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory, Doosan 055764 L-S-12-0000, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.884″(125MM) x 21.625″(549MM)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″(63MM)
|
- Ports M122 x 1.5
- Retracted Length 35.25″
- Gland Face to Rod Pin Center 4″
- Shpg. 145 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.98″
- Pin-Center-To-Swivel Eye-End 2.766″
- Swivel Eye Width 2.125″
- Pin Hole 2.365″(60MM)
|
- Base End Swivel Eye
- Width 1.975″
- Pin-Center-To-Swivel Eye-End 2.846″
- Swivel Eye Width 2.125″
- Pin Hole 2.365″(60MM)
|
