Description

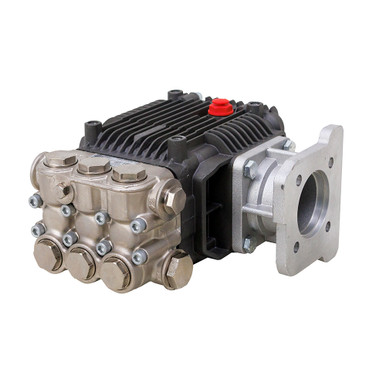

4 GPM PLUNGER PUMP
New, Annovi Reverberi XMA 4G20 E plunger pump. 3-piston alternating volumetric pumps for use on cleaning units and industrial systems. Can be coupled to various types of motors, directly or with flexible joint. Die-cast aluminum alloy pump body and cover. Pistons driven by crank-connecting rod mechanism. Pump shaft high-strength steel. Oversized friction bearings. Special low-friction die-cast zinc-aluminum alloy connecting rods.
SPECIFICATIONS
- Brand Annovi Reverberi
- Model Number XMA 4G20 E
- Series 178
- Flow 4 GPM
- Pressure 2000 PSI
- RPM 1750 RPM
- Required HP 5.5 HP
- Rotation Reversible
- Shaft 5/8″ hollow w/keyway
- Flange Mount Four 0.35″ holes on 2-1/8″ x 2-1/8″ centers
- Body Mount Four M8-1.25 tapped holes on 3-1/8″ x 4-1/2″ centers
- Inlet Port 1/2″ BSPP
- Outlet Port 3/8″ BSPP
- Size 9-1/4″ x 7-3/4″ x 4-3/4″
- Shpg 18 lbs.
