Sale!

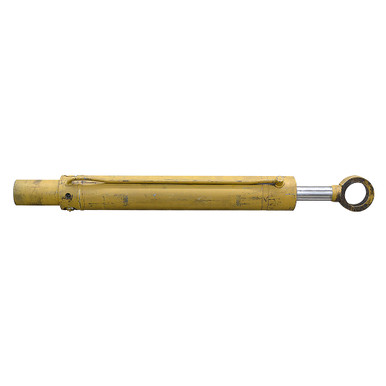

4" x 23" x 2" Double Acting Hydraulic Cylinder Benton Harbor Engineering 1755978

4″ x 23″ x 2″ Double Acting Hydraulic Cylinder Benton Harbor Engineering 1755978

Original price was: $249.95.Current price is: $62.49.

SKU: 906207 Category:

Description

4″ x 23″ x 2″ HYDRAULIC CYLINDER
Unused old inventory. BENTON HARBOR ENGINEERING 1755978, welded, double acting hydraulic cylinder. Cylinder has two unknown cartridge valves, one in the extend port and one in the retract port.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4″ x 23″
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 2″
  • Ports SAE 6
  • Retracted Length 45″
  • Gland Face to Rod Pin Center 8.25″
  • Shpg. 109lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.49″
  • Pin-Center-To-Tang-End 2.3″
  • Pin Hole 3.185″(80mm)
  • Base End Flat
