Description

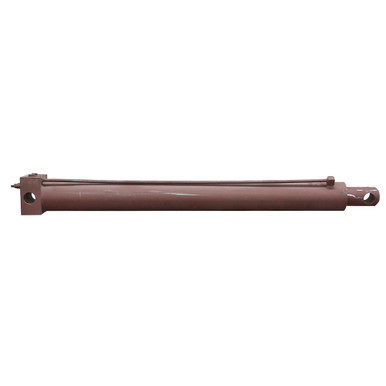

4″ x 24″ x 3″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, model 540-40121. Base end block has two SUN CKCB LCN pilot-to-open check valve cartridges.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 24″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 3″
|
- Ports SAE 8
- Retracted Length 51.75″
- Gland Face to Rod Pin Center 3.625″
- Shpg. 231 lbs.
|
| END MOUNTINGS |
- Rod End Thru-Hole
- Width 3″
- Pin Center to Base End 1.75″
- Pin Hole 1.75″
|
- Base End Thru-Hole
- Width 5.240″
- Pin Center to Base End 1.375″
- Pin Hole 1.75″
|
