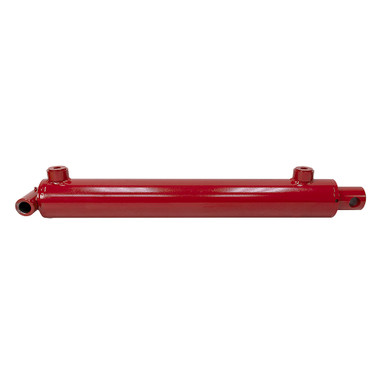

4" x 26" x 2.75" Double Acting Hydraulic Cylinder Bailey 322528

4″ x 26″ x 2.75″ Double Acting Hydraulic Cylinder Bailey 322528

Original price was: $279.95.Current price is: $69.99.

SKU: 906440 Category:

Description

4″ x 26″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 322-358, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4″ x 26″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI max.
  • Rod Dia. 2.75″
  • Ports SAE 20
  • Retracted Length 36″
  • Gland Face to Rod Pin Center 2.94″
  • Shpg. 144 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 2.4″
  • Pin Center to Base End 1.29″
  • Pin Hole 1.25″
  • Base End Cross-Tube
  • O.D. 2″
  • Width 6.25″
  • Pin Hole 1.25″
