Description

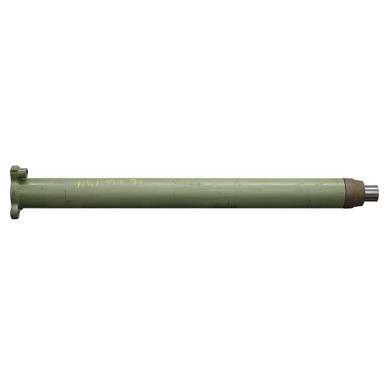

4″ x 44.75″ x 2.5″ SINGLE ACTING HYDRAULIC MAST CYLINDER
Unused old inventory. CLARK EQUIP 1626794, welded, single acting hydraulic mast cylinder.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4″ x 44.75″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
- Rod Thickness 2.5″
|
- Work Port SAE 12
- Breather Port 1/2″ NPT
- Retracted Length 54.25″
- Gland Face to Rod Pin Center 2.188″
- Shpg. 181 lbs.
|
| END MOUNTINGS |
|
|
- Base End Flat with One Bolt Flange Mount
- Flange Width7.895″
- Flange Thickness 1.058″
- Bolt Hole 0.565″ O.D.
|
