Description

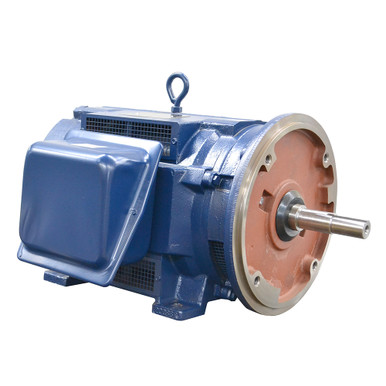

40 HP 3515 RPM 460 VOLT AC 3 PHASE MARATHON MOTOR
New, Marathon model RVA286TTDP7302BBL motor.
SPECIFICATIONS
- Power 40 HP
- Voltage 460 AC
- Phase 3
- Frequency 60 Hz
- Amperage 50 Amps
- Speed 3515 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearing Ball
- Enclosure ODP
- Duty Continuous
- Frame 286JM
- Face Mount Four 5/8″-11 tapped holes on 11″ dia. bolt circle
- Rigid Base Mount Four 0.53″ dia. holes on 11″ x 11″ centers
- Shaft 1-3/8″ dia. x 2-3/8″ stepped down to 1-1/4″ dia. x 2-1/4″ w/ 1/4″ keyway and tapped for 1/2″-13 x 1-3/4″
- Size 26″ x 18″ x 14″
- Shpg. 343 lbs.
