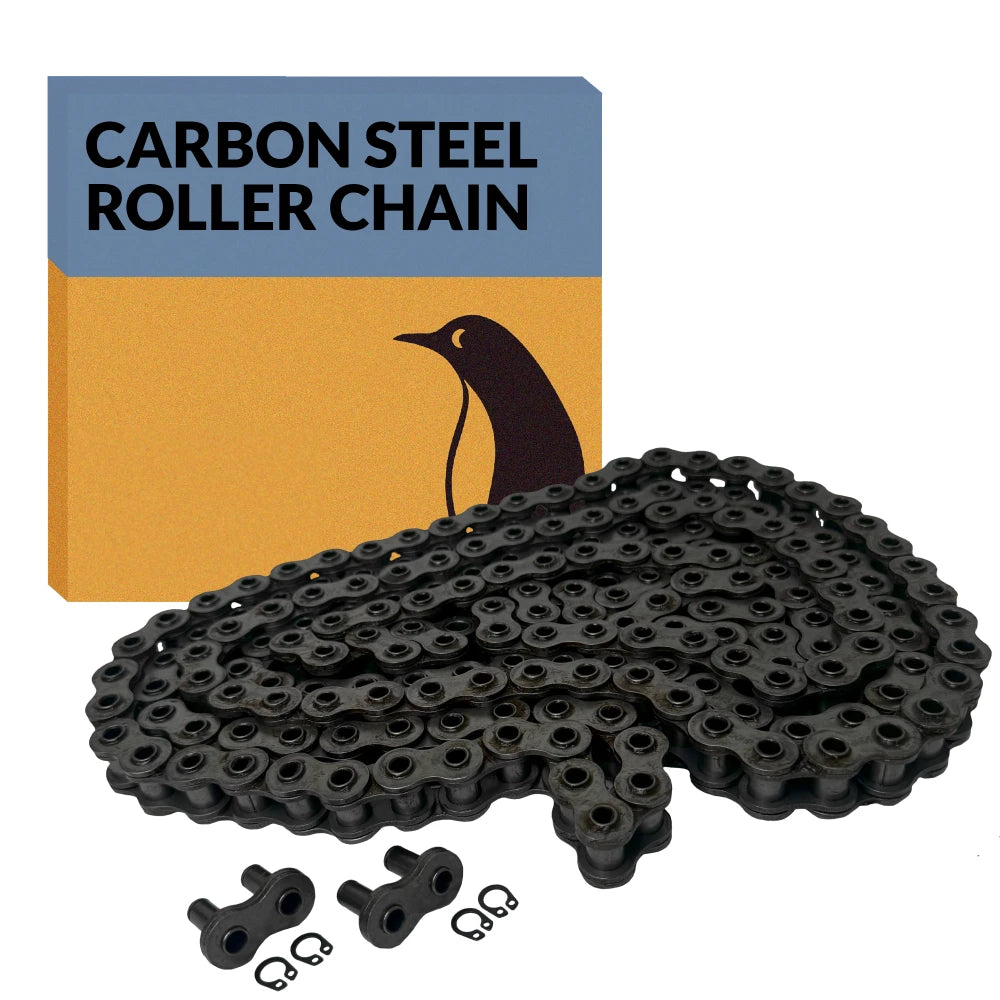

Description
|
ANSI No |
40HP | LENGTH | 10 ft |
| PITCH | 0.500 inch (13 mm) | ROLLER DIAMETER (D1 MAX) |
0.312 inch (8 mm) |
| WIDTH BETWEEN PLATES (B1 MIN) |
0.309 inch (8 mm) | PIN DIAMETER (D2 MAX) |
0.156 inch (4 mm) |
| PIN LENGTH (L MAX) |
0.650 inch (17 mm) | PIN LENGTH (LC MAX) |
0.693 inch (18 mm) |
| INNER PLATE DEPTH (H2 MAX) |
0.472 inch (12 mm) | PLATE THICKNESS (T MAX) |
0.059 inch (1 mm) |
| ULTIMATE TENSILE STRENGTH (QMIN) |
11/2,473 kN/LB | WEIGHT | 0.362 lb/ft (0.54 kg/m) |
