Description

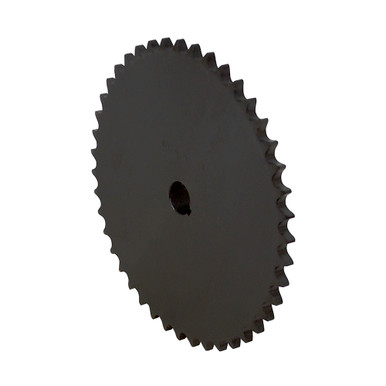

40 PITCH ANSI ROLLER CHAIN SPROCKET
New. ANSI standard 40 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 40
- Number of Teeth 43
- Bore Size 3/4″
- Model Number 40BS43H-3/4
- Outside Diameter 7.096″
- Hub Diameter 3-1/2″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/8″
- Keyway Size 3/16″ wide x 3/32″ depth
- Shpg. 6 lbs.
