45.76 cu in Hydraulic Wheel Motor Hydro Custom BMEW-KWGABA-F

Description

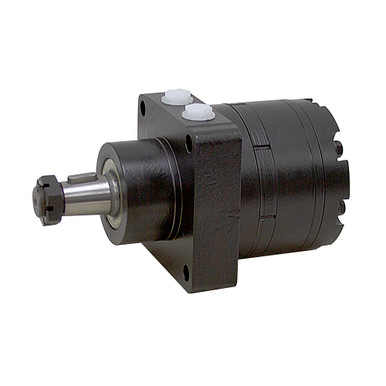

45.76 cu in Hydraulic Wheel Motor Hydro Custom BMEW-KWGABA-F
Brand new Hydro Custom BMEW series hydraulic wheel motor. Gerolor power element. Needle bearings allow for high axial and radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BMEW-KWGABA-F
• Manufacturer Part Number CUM 392-3009F
• Displacement 45.76 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    1520 PSI cont.
    1740 PSI int.
• Torque
    9293 in-lbs. cont.
    10443 in-lbs. int.
• Speed
    100 RPM cont.
    120 RPM int.
• Flow
    19.8 GPM cont.
    23.7 GPM int.
• Mount 4 Bolt wheel mount on 5.81″ bolt circle with 3-1/4″ O.D. pilot
• Shaft 1-1/4″ tapered x 4.094″ long w/5/16″ parallel key, end threaded 1″-20 with castle nut
• Ports SAE 10
• Size 12.361″ x 4.994″ x 4.994″
• Shpg. 37 lbs.
