Description

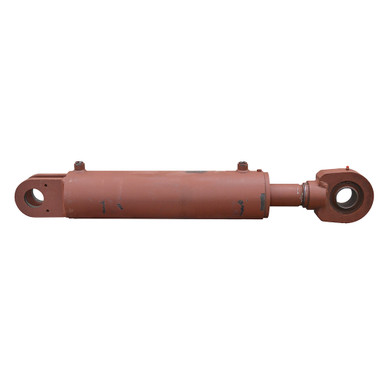

5.103″(130mm) x 16.719″(425mm) x 2.759″(70mm) HYDRAULIC CYLINDER
Unused old inventory. FAYAT-DYNAPAC D965080298, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.103″(130mm) x 16.719″(425mm)
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.759″(70mm)
- Rod Thickness 2.759″(70mm)
|
- Ports BSPP 1/2″-14 TPI
- Retracted Length 37.438″
- Gland Face to Rod Pin Center 9.25″
- Shpg. 199 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.381″
- Pin-Center-To-Swivel Eye-End 3.283″
- Swivel Eye Width 2.468″
- Pin Hole 2.364″(60mm)
|
- Base End Clevis
- Outside Width 3.454″
- Inside Width 1.841″
- Throat Depth 6″
- Pin Hole 2.364″(60mm)
|
