Description
5.138″(130mm) x 33.188″(843mm) x 2.757″(70mm) HYD CYL

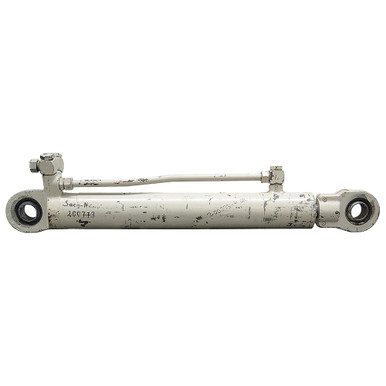

Unused old inventory. O & K GERMANY 099 966, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.138″(130mm) x 33.188″(843mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.757″(70mm)
|
- Ports 24° Flareless 30-S
- Retracted Length 56″
- Gland Face to Rod Pin Center 7.875″
- Shpg. 388 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 2.544″
- Pin-Center-To-Swivel Eye-End 3.808″
- Swivel Eye Width 2.752″
- Pin Hole 2.757″(70mm)
|
- Base End Swivel Eye
- Width 2.519″
- Pin-Center-To-Swivel Eye-End 3.917″
- Swivel Eye Width 2.754″
- Pin Hole 2.758″(70mm)
|
