5.48"(140mm) x 19.25"(489mm) x 2.75"(70mm) Double Acting Hydraulic Cylinder Schaeff Hydraulics 6501456500

5.48″(140mm) x 19.25″(489mm) x 2.75″(70mm) Double Acting Hydraulic Cylinder Schaeff Hydraulics 6501456500

Original price was: $299.95.Current price is: $74.99.

SKU: 904761 Category:

Description

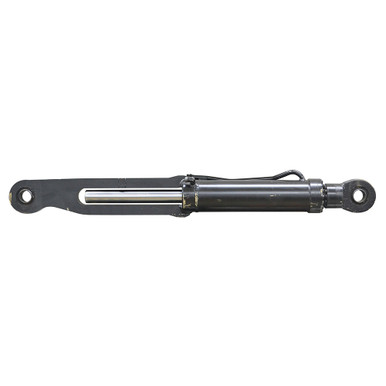

5.48″(140mm) x 19.25″(489mm) x 2.75″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. SCHAEFF HYDRAULICS numbers on cylinder 6501456500.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.48″(140mm) x 19.25″(489mm)
  • Barrel Thickness 0.507″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″(70mm)
  • Ports M30 x 2 / 24° flare-less fitting
  • Retracted Length 67.5″
  • Gland Face to Rod Pin Center 8″
  • Shpg. 397 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.32″
  • Pin-Center-To-Swivel Eye-End 3.38″
  • Swivel Eye Width 2.5″
  • Pin Hole 2.36″(60mm)
  • Base End Swivel Eye
  • Width 2.37″
  • Pin-Center-To-Swivel Eye-End 3.34″
  • Swivel Eye Width 2.5″
  • Pin Hole 2.36″(60mm)
