Description

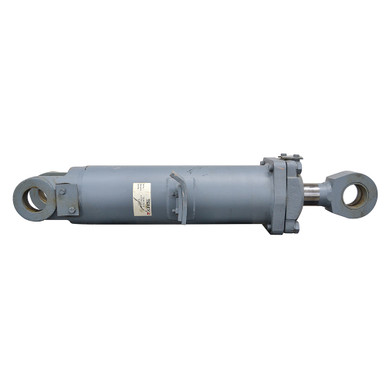

5.5″ x 17.25″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. TEREX 15317901, welded, double acting , hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 17.25″
- Barrel Thickness 0.375″
- Gland Retainer Bolt-On
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
|
- Ports CODE 61-12 FLANGE
- Retracted Length 32.875″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 198 lbs.
|
| END MOUNTINGS |
- Base End Tang
- Width 2.523″
- Pin-Center-To-Tang-End 2.476″
- Pin Hole 2.5″
|
- Base End Clevis
- Outside Width 6.559″
- Inside Width 3.110″
- Throat Depth 5″
- Pin Hole 2.5″
|
