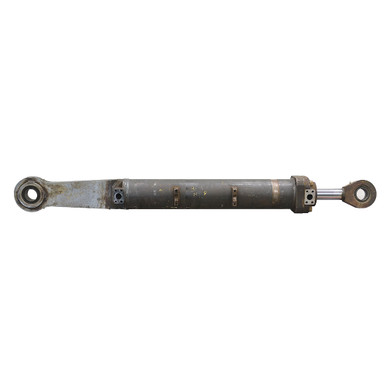

5.5" x 30" x 2.5" Double Acting Hydraulic Cylinder

5.5″ x 30″ x 2.5″ Double Acting Hydraulic Cylinder

Original price was: $499.95.Current price is: $99.99.

SKU: 902506 Category:

Description

5.5″ x 30″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 30″
  • Barrel Thickness 0.511″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 71.25″
  • Gland Face to Rod Pin Center 10.25″
  • Shpg. 369 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.53″
  • Pin-Center-To-Swivel Eye-End 3.09″
  • Swivel Eye Width 2.54″
  • Pin Hole 2-1/2″
  • Base End Swivel Eye
  • Thickness, Max 1.75″
  • Pin-Center-To-Swivel Eye-End 3.72″
  • Swivel Eye Width 1.77″
  • Pin Hole 2-1/2″
