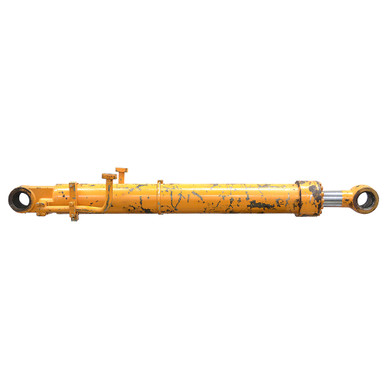

5.5" x 47.125" x 3.75" Double Acting Hydraulic Cylinder

5.5″ x 47.125″ x 3.75″ Double Acting Hydraulic Cylinder

Original price was: $429.95.Current price is: $85.99.

SKU: 904463 Category:

Description

5.5″ x 47.125″ x 3.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 47.125″
  • Barrel Thickness 0.504″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.75″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 73.75″
  • Gland Face to Rod Pin Center 9.75″
  • Shpg. 563 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.95″
  • Pin-Center-To-Tang-End 3″
  • Pin Hole 3.57″(90mm)
  • Base End Tang
  • Thickness, Max 3.92″
  • Pin-Center-To-Tang-End 2.78″
  • Pin Hole 3.17″(80mm)
