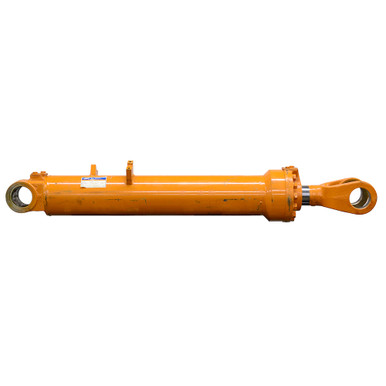

5.51"(140mm) x 29.625"(752mm) x 3.15"(80mm) Double Acting Hydraulic Cylinder Samsung 2046-00022

5.51″(140mm) x 29.625″(752mm) x 3.15″(80mm) Double Acting Hydraulic Cylinder Samsung 2046-00022

Original price was: $449.95.Current price is: $89.99.

SKU: 904794 Category:

Description

5.51″(140mm) x 29.625″(752mm) x 3.15″(80mm) DA HYD CYL
Unused old inventory. SAMSUNG double acting hydraulic cylinder. Numbers on cylinder 2046-00022.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.51″(140mm) x 29.625″(752mm)
  • Barrel Thickness 0.362″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 3.15″(80mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length50.875″
  • Gland Face to Rod Pin Center 7.875″
  • Shpg. 302 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 6.5″
  • Inside Width 3.675″
  • Throat Depth 6.5″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 4.7″
  • Pin-Center-To-Tang-End 2.6″
  • Pin Hole 3.15″(80mm)
