Description
5.872″(150mm) x 53.543″(1360mm) x 4.136″(105mm) HYD CYL

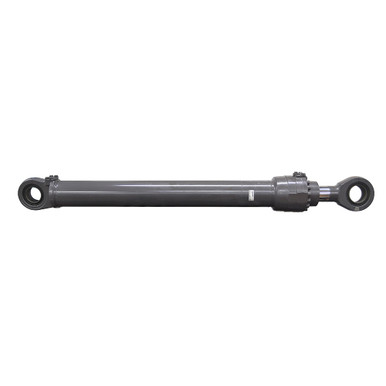

Unused old inventory. VOLVO 14342390-01, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.872″(150mm) x 53.543″(1360mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.136″(105mm)
- Rod Thickness 4.136″(105mm)
|
- Extend Port CODE 62 FLANGE 20
- Retract Port CODE 62 FLANGE 16
- Retracted Length 82.75″
- Gland Face to Rod Pin Center 10.5″
- Shpg. 799 lbs.
|
| END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 3.024″
- Pin-Center-To-Swivel Eye-End 4.551″
- Swivel Eye Width 2.749″
- Pin Hole 4.331″(110mm)
|
- Base End Swivel Eye
- Width 2.987″
- Pin-Center-To-Swivel Eye-End 4.382″
- Swivel Eye Width 2.75″
- Pin Hole 3.938″(100mm)
|
