Description
5.89″(150mm) x 56.65″(1440mm) x 3.94″(100mm) DA HYD CYL

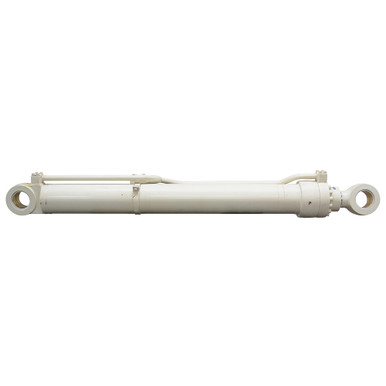

Unused old inventory. DOOSAN left hand double acting hydraulic boom cylinder. Numbers on cylinder 440-00558.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.89″(150mm) x 56.65″(1440mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.94″(100m)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 78.75″
- Gland Face to Rod Pin Center 5.5″
- Shpg. 740 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 4.21″
- Pin-Center-To-Tang-End 3.78″
- Pin Hole 3.94″(100mm)
|
- Base End Tang
- Width 4.21″
- Pin-Center-To-Tang-End 3.78″
- Pin Hole3.94″(100mm)
|
