Description
5.905″(150mm) x 56.688″(1440mm) x 3.939″(100mm) HYD CYL

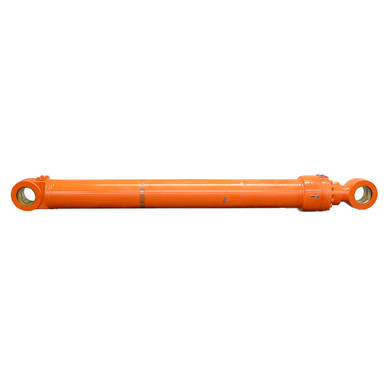

Unused old inventory. DOOSAN 440-00030, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.905″(150mm) x 56.688″(1440mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.939″(100mm)
- Rod Thickness 3.939″(100mm)
|
- Ports CODE 62 FLANGE 16
- Retracted Length 78.75″
- Gland Face to Rod Pin Center 5.625″
- Shpg. 650 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 4.205″
- Pin-Center-To-Tang-End 3.748″
- Pin Hole 3.94″(100mm)
|
- Base End Tang
- Width 4.205″
- Pin-Center-To-Tang-End 3.735″
- Pin Hole 3.94″(100mm)
|
