5.91"(150mm) x 44.1"(1120mm) x 3.94"(100mm) Double Acting Hydraulic Cylinder Volvo 14344615

5.91″(150mm) x 44.1″(1120mm) x 3.94″(100mm) Double Acting Hydraulic Cylinder Volvo 14344615

Original price was: $599.95.Current price is: $119.99.

SKU: 904834 Category:

Description

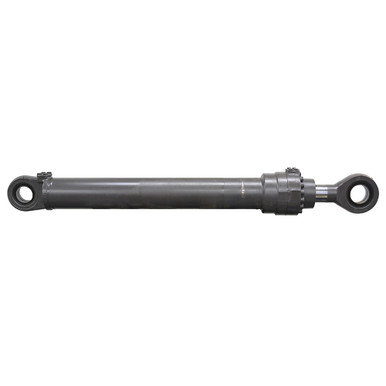

5.91″(150mm) x 44.1″(1120mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 14344615.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.91″(150mm) x 44.1″(1120mm)
  • Barrel Thickness 0.464″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.94″(100mm)
  • Extend Port 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 71.75
  • Gland Face to Rod Pin Center 9.75″
  • Shpg. 590 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 3.03″
  • Pin-Center-To-Swivel Eye-End 4.38″
  • Swivel Eye Width 2.76″
  • Pin Hole 3.94″(100mm)
  • Base End Swivel Eye
  • Width 2.96″
  • Pin-Center-To-Swivel Eye-End 3.91″
  • Swivel Eye Width 2.36″
  • Pin Hole 3.54″(90mm)
