5.91"(150mm) x 48"(1219mm) x 4.13"(105mm) Double Acting Hydraulic Cylinder Volvo 9014239799

5.91″(150mm) x 48″(1219mm) x 4.13″(105mm) Double Acting Hydraulic Cylinder Volvo 9014239799

Original price was: $599.95.Current price is: $119.99.

SKU: 904793 Category:

Description

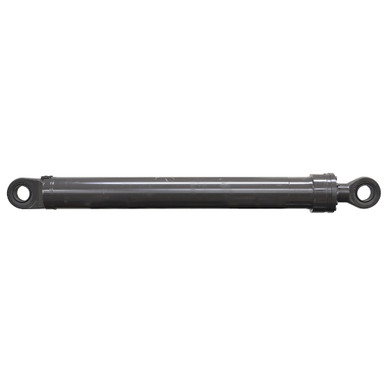

5.91″(150mm) x 48″(1219mm) x 4.13″(105mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 9014239799.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.91″(150mm) x 48″(1219mm)
  • Barrel Thickness 0.412″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 4.13″(105mm)
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length71.25″
  • Gland Face to Rod Pin Center 6.375″
  • Shpg. 511 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.39″
  • Pin-Center-To-Tang-End 3.39″
  • Swivel Eye Width 2.16″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 2.39″
  • Pin-Center-To-Tang-End 3.32″
  • Swivel Eye Width 2.16
  • Pin Hole3.15″(80mm)
