Description

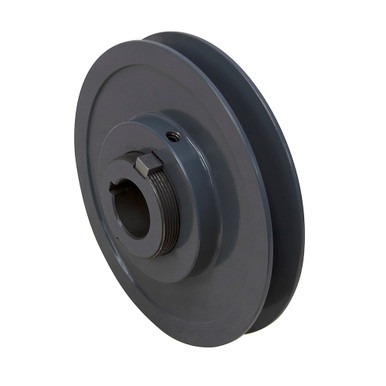

SINGLE GROOVE VARIABLE PITCH PULLEY
New, single groove, cast iron pulley with keyway and one set-screw. For use with type “A” and “B” belts. Fully balanced.
SPECIFICATIONS
- Bore 1-1/8″
- Outside Diameter 6″
- Belt Type A (1/2″)
Minimum Datum Diameter 4.2″
Maximum Datum Diameter 5.2″ - Belt Type B (5/8″) Datum Diameter
Minimum Datum Diameter 4.4″
Maximum Datum Diameter 5.6″ - Bore Thru Length 2.218″
- Outside Groove Width
Minimum Width 0.88″
Maximum Width 1.25″ - Inside Groove Width
Minimum Width 0.66″
Maximum Width 1.031″ - Shpg. 7 lbs.
Outside Diameter Diameter measured at the outside of the pulley.
Datum Diameter The datum diameters are an industry standard reference point used for calculations such as center distance and belt length. The datum system replaces the pitch system for classical belts and pulleys to compensate for differences in manufacturers construction of belts.
