Description

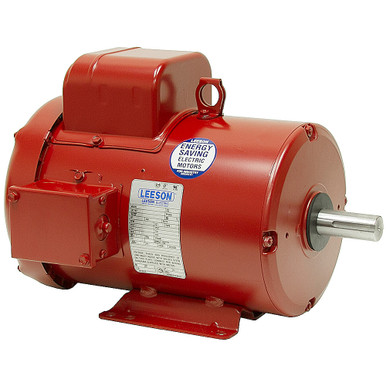

FARM DUTY MOTOR
Brand new Lesson heavy duty motor. High starting torque. Totally enclosed fan cooled with double shielded ball bearings for outdoor use. Capacitor start. Manual reset thermal overload protection.
SPECIFICATIONS
- Brand Leeson
- Model Number 131543.00
- Power 5 HP
- Voltage 230 Volt AC
- Phase 1
- Frequency 60 Hz
- Amperage 20.5 Amps
- Speed 1740 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 184T
- Base Mount Six 0.41″ dia. holes on 4.5″ and 5.5″ x 7.5″ centers
- Shaft 1.125″ dia. x 2.81″ overall length w/ 0.25″ wide x 1.75″ long keyway
- Size 17.46″ x 11.31″ x 10.89″
- Shpg. 146 lbs.
