Sale!

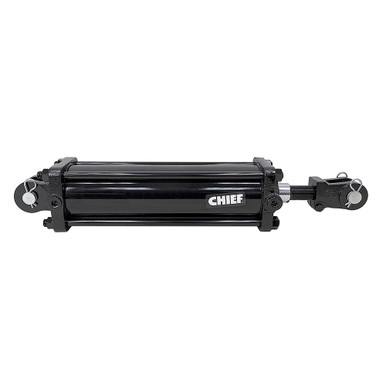

5" x 16" x 2" ASAE Double Acting Hydraulic Cylinder Chief 211425

5″ x 16″ x 2″ ASAE Double Acting Hydraulic Cylinder Chief 211425

Original price was: $461.80.Current price is: $92.36.

SKU: 906578 Category:

Description

CHIEF DOUBLE ACTING TIE-ROD CYLINDER
Brand new, Chief TC3 tie-rod hydraulic cylinder rated at 3000 PSI. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

SPECIFICATIONS
  • Brand Chief
  • Model Number 211425
  • Type Double-Acting
  • Bore x Stroke 5″ x 16″ ASAE
  • Pressure 3000 PSI
  • Rod Dia. 2″
  • Column Load 58900 lbs.
  • Ports SAE 12
  • Retracted Length 31.5″
  • Shpg. 111 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.95″
  • Inside Width 1.20″
  • Throat Depth 2.125″
  • Pin Hole 1.25″
  • Base End Clevis
  • Outside Width 2.95″
  • Inside Width 1.17″
  • Throat Depth 2 “
  • Pin Hole 1.25″
