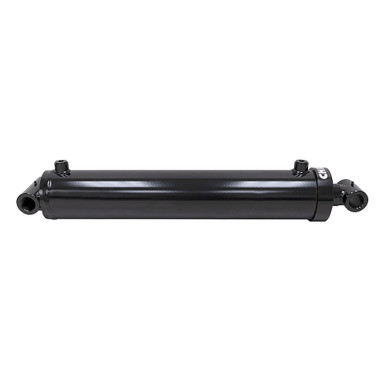

5" x 24" x 2.5" Double Acting Hydraulic Cylinder Chief 216207

5″ x 24″ x 2.5″ Double Acting Hydraulic Cylinder Chief 216207

Original price was: $838.25.Current price is: $167.65.

SKU: 906231 Category:

Description

5″ x 24″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Brand new. Chief 216207, external thread cap double acting hydraulic cylinder. Featuring welded cross-tube mounts with grease zerk on the rod and base ends. Heavy-duty piston with piston stem, complete with wear rings to reduce friction. The screw-in gland is removable from the rod end for seal servicing convenience. Ground and polished chromed steel rod.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 24″
  • Gland Retainer Externally Threaded
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5″
  • Ports SAE 12
  • Retracted Length 35″
  • Gland Face to Rod Pin Center 2.75″
  • Shpg. 116 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.5″
  • Width 4″
  • Pin Hole 1.5″
  • Base End Cross-Tube
  • O.D. 2.5″
  • Width 5.75″
  • Pin Hole 1.5″
