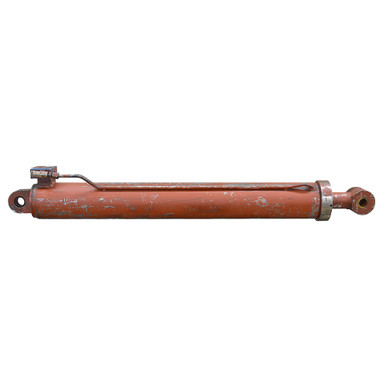

5" x 36" x 2.5" Double Acting Hydraulic Cylinder

5″ x 36″ x 2.5″ Double Acting Hydraulic Cylinder

Original price was: $449.95.Current price is: $89.99.

SKU: 904932 Category:

Description

5″ x 36″ x 2.5” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has an adjustable spring relief valve.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 36″
  • Barrel Thickness 0.256″
  • Gland Retainer Externally threaded
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 3/8″ NPT
  • Retracted Length 51.125″
  • Gland Face to Rod Pin Center 5″
  • Shpg. 203 lbs.
END MOUNTINGS
  • Rod End Crosstube
  • O.D. 3.73″
  • Width 3.75″
  • Pin Hole 1-1/4″
  • Base End Swivel Eye
  • Width 1.49″
  • Pin-Center-To-Swivel Eye-End 1.75″
  • Swivel Eye Width 1.25″
  • Pin Hole 1-1/4″
