500 HP 4160 Volt AC 3 Phase 3577 RPM Electric Motor Flanders 682H [501170]

Description

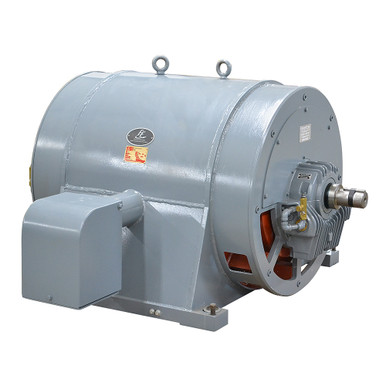

500 HP 3577 RPM 4160 VOLT AC 3 PHASE FLANDERS ELECTRIC MOTOR
New, Flanders Electric model 682H.

SPECIFICATIONS

• Power 500 HP
• Voltage 4160 Volt AC
• Phase 3
• Frequency 60 Hz
• Amperage 60 Amps
• Speed 3577 RPM
• Rotation Reversible
• Service Factor 1.0
• Bearings Ball
• Enclosure ODP
• Duty Continuous
• Base Mount Anchor holes 39″x31″ center to center
• Shaft 2-5/8″ dia. x 4-1/4″ long w/ 5/8″ wide keyway.
• Size 51.375″ x 59.25″ x 33.25″
• Shpg. 4535 lbs.
