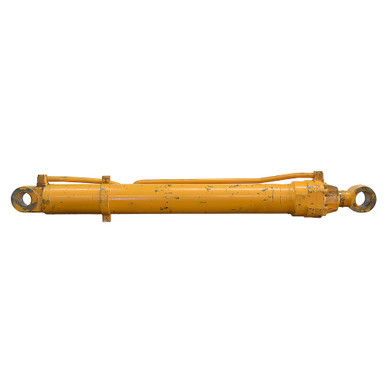

6.26″(160mm) x 59″(1498.6mm) x 4.15″(105mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Hyundai numbers on cylinder 31EH-00051. This is the right handed version of item 902524
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.26″(160mm) x 59″(1498.6mm)
- Barrel Thickness 0.581″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 4.15″(105mm)
|
- Ports 4 bolt 1″ code 62 flange size 16
- Retracted Length 84″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 802 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 5.11″
- Pin-Center-To-Tang-End 3.33″
- Pin Hole 4.14″(105mm)
|
- Base End Tang
- Thickness, Max 5.5″
- Pin-Center-To-Tang-End 3.12″
- Pin Hole 3.54″(90mm)
|
