Description

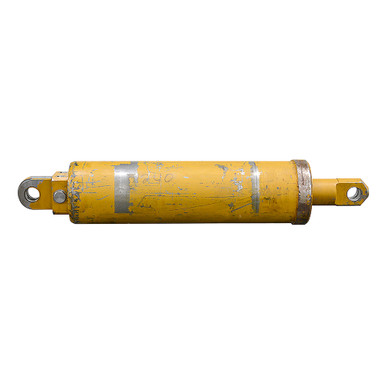

6.281″(160mm) x 14.375″(365mm) x 3.151″(80mm) HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic. Cylinder has sliding check valve for both retract and extend ports.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.281″(160mm) x 14.375″(365mm)
- Gland Retainer Snap ring
- Pressure 2500 PSI max.
- Rod Dia. 3.151″(80mm)
|
- Ports BSPP 8
- Retracted Length 37″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 268 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 1.905″
- Pin-Center-To-Tang-End 1.882″
- Pin Hole 1.57″(40mm)
|
- Base End Tang
- Width 2″
- Pin-Center-To-Tang-End 1.805″
- Pin Hole 1.57″(40mm)
|
